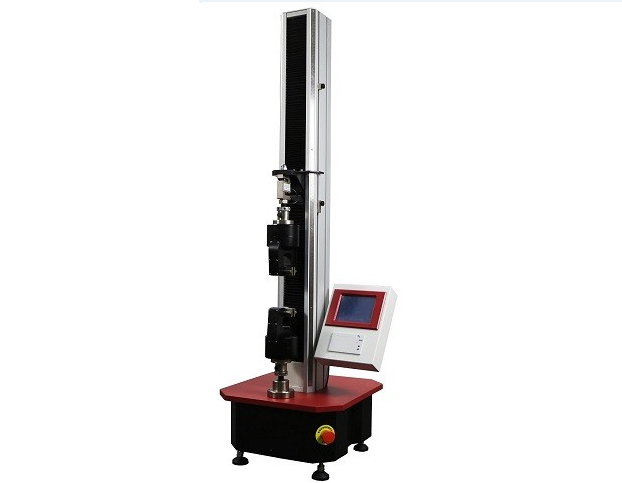

YG026DK Universal Strength Tester

【Scope】

In terms of textiles tensile, tear, bursting, elongation, load, elastic, seam slippage and

stripping test of mechanical properties. It is widely used in rubber, plastics, leather,

metal, wire, paper, packaging, building materials, petrochemical, electrical, tensile,

geotextile material compression, bending, bonding, peeling, tearing and bursting,

creep test stress, elongation and deformation test.

【Standards】

GB/T3923.1/2, GB/T 3917.1/2/3/4/5, GB/T19976, ISO13934.1,

ISO13935.1, ISO9073.3/4, ASTM D5035, ASTM D2261 etc.

【Features】

1.Adopt high quality AC servo with wide speed range and precision

speed control.

2.High precision load sensor. Sampling frequency is up to 1KHz with

24 bits A/D.

3.Touch screen control and build-in printer.

4.Agile data report format, curve/chart, data table etc. Choose required data and generate report.

5.PC and Androids apps is available for this instrument for remote control.

6.CRE (Constant rate of elongation).

7.Multi-protection in place, travel and load limitation, anti-collision of the jig, over-current/voltage protection, real-time monitoring of main components. It makes the instrument more secure and reliable.
