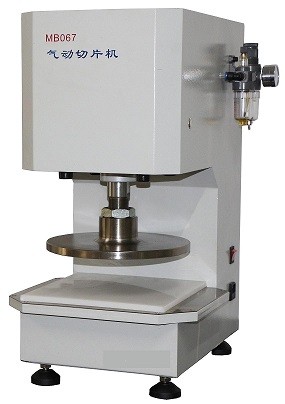

MB067 Pneumatic Sample Cutter

【Scope】

It is designed for sampling and cutting of wool,

cotton, chemical fiber, knitted fabric, leather

and rubber etc.

【Parameters】

1.  Top plate diameter: 185mm

2.   Max sample dimension: 125x125mm

3.   Max sample thickness: 50mm

4.   Air-pressure: ~4kg/cm2

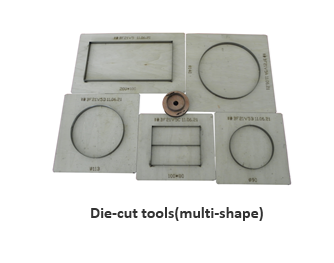

5.   Die-cut tools are on-the-shelf:

Round-shape: OD 38mm

Round-shape: OD 140mm

Rectangle:  40x100mm

Rectangle:  50×150mm

Other size of tools can be customized

6.   Device Dimension: 44×37×65cm

      Package Dimension:59×49×81cm

7.   Net Weight: 65KGS

      Gross Weight: 77KGS
