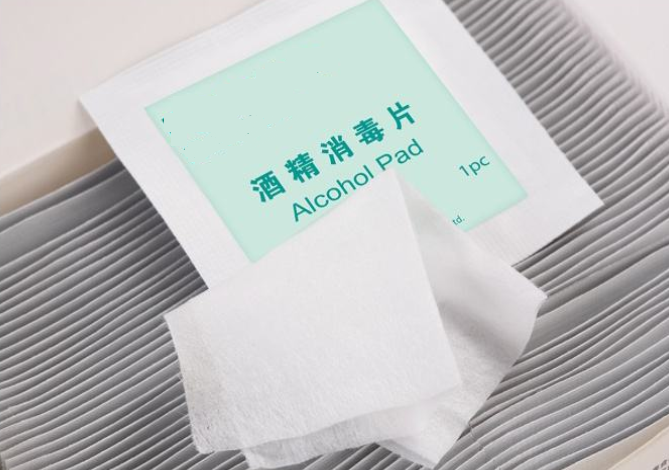

Applicable products: Medical alcohol sheet, cleaning wipes and mobile wipes etc.

Function: Alcohol sheet modling, cutting & quantity counting

Folding: Fold in half horizontally

Discharge mode: Speed motor counting while material discharges

The unfolded material width: 30mm*60mm or 60mm*60mm

Material size afterfoling:30mm*30mm

Applicable Material: 45-80gsm spunlace nonwoven fabric

The packaging size of finished alcohol sheet: 50mm*50mm or to can be customized

Production speed: 400-480 sheet/min.

Equipment power: 2.5kW

Air compressor is not required

The  Advantages of Alcohol sheet Packing Machine

1.Taida color touch screen, Taida PLC control system, Taida servo motor, Intelligent devices, super man-machine dialogue performance and easy to operate.

2.Four sides sealing bag, packaging sealing system, four bag rows, sealing twice, no leakage.

3.The devices for nonwovens unwinding, folding and slicing are made of stainless steel; the cleanliness of products meets the medical standards.

4.Adjustable volume quantitative irrigation system.

5.Vertical intelligent photoelectric trademark positioning system.

6.Horizontal manual deviation correction system for packaging film unwinding.

7.All stainless steel countertops, production clean without rust.

8. The non-stainless steel iron parts of the equipment adopt the thickening nickel plating process, and use to carry corrosion for a long time.

9. The weight of the equipment is 800kgs, which can avoide the problem of the left and right shaking due to light weight during high-speed operation and ensure safe and stable operation.
